The use of overhead ionizing air blower ensures powerful, long range, wide area static neutralization. They are widely used to neutralize mouldings, winders, sheets and other large objects.
It is the ideal technique of removing static, contaminants and dust from three dimensional parts before assembling, packaging, painting or finishing. The overhead ionizing air blower neutralizes the static electricity and cleans at distances up to 1 foot. Fan is used to transport ionized air to the object for long range static neutralization or dust removal. If the air is ionized, the static charge will be eliminated, which allows superior quality cleaning without re-attraction.

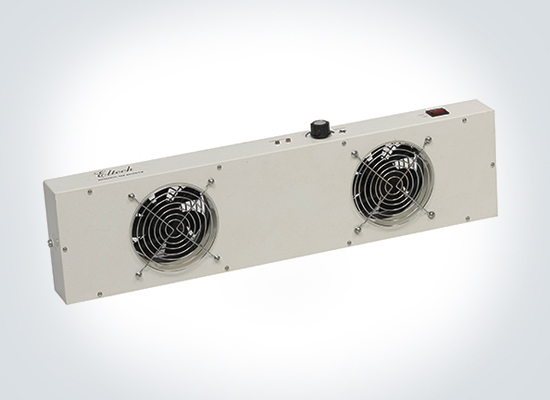

Technical specifications of 2 Fans Overhead Ionizng Air Blower:
Model |
Overhead ionizing air blower 2 Fans |
Working Voltage |
12V DC |
Input Voltage |
220V AC 50HZ |
Power |
25W |
Discharge time |
≤3s(H 450mm to center, 1000V ~100V descent) |
Ion Balancing |
≤ ±10V |
Weight |
3.5 kg |
Air volume(adjustable) |
≤ 2*90 CFM |
Noise |
≤ 45db(150mm to blower) |
Ozone thickness |
≤ 0.01ppm (150mm to nozzle center) |
Working temperature |
0°C - 50°C |
Effective scope |
600 X 300 X 750mm(L*W*H) |
Dimension and weight |
640 x 175 x 118 mm ( L x W x H ) |
Applications of 2 Fans Overhead Ionizng Air Blower:
- Electronic
- Optoelectronics
- Semiconductors
- Plastics
- Films
- Printing industries
